Jeep Transmissions: TF904 / TF909

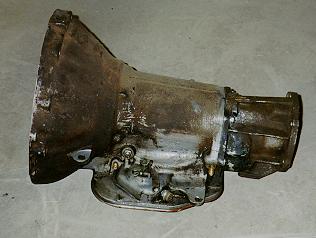

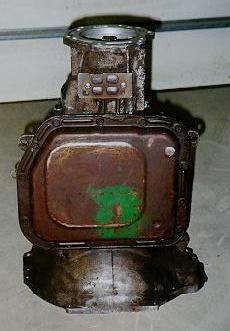

TF 904 front TF 904 side TF 904 bottom


Jeep Trans

45RFE
46RE
44RE
42RE
46RH
32RH
30RH
AW4
AX-15
AX-5
BA10/5
T-5
TF727
909
999
904
T-4
SR-4
T-178
T-177
T-176
T-150
T-18
T-15
TH400
T-14
T-86
T-90
T-84

Jeep Trans

Upgrades
Factory Options
General


The Torque Flite 904 and 909 are light duty Chrysler 3 speed automatic transmissions. They have an aluminum case and a 23 spline output shaft. The case is ??" long and ?? bolts hold in the pan. The 909 is a 904 with a lock-up torque converter.

Usage

The TF904 was used in CJs from 1980-1986 only with the I4 engine. From 1980-1983, the 904 had a Chevy engine pattern for the "Iron Duke" 2.5L. From 1984-1986 the 904 had an AMC pattern for the AMC 2.5L. The 904 was also used from 1984-1986 in XJs and MJs with the 2.5L and 2.8L engine. I'm not sure when they started using the 909 with the lock-up torque converter.

Transmission 1st 2nd 3rd 4th 5th Rev
TF904 2.45 NA 1.00 NA
TF909 2.45 NA 1.00 NA
