Jeep Transmissions: T-15

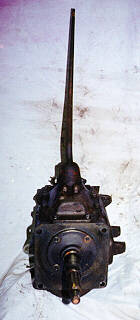

T-15 front T-15 side T-15 back


Jeep Trans

45RFE
46RE
44RE
42RE
46RH
32RH
30RH
AW4
AX-15
AX-5
BA10/5
T-5
TF727
909
999
904
T-4
SR-4
T-178
T-177
T-176
T-150
T-18
T-15
TH400
T-14
T-86
T-90
T-84

Jeep Trans

Upgrades
Factory Options
General


The T-15 is a 3 speed transmission with a cast iron case. I has a casting number of T15 or 1307 and a 1 1/8" 10 spline input shaft. The T-15 has a 1 3/8" 6 spline output shaft. It has a reputation as the strongest of the 3 speeds.

T-15 top Top view of the T-15.
T-15 passenger side The casting numbers on the T-15 are on the passenger side near the top back.
T-15 vs. T-90 Here's a top view of a T-90 and a T-15. The T-90 has an adapter on the front for the Dauntless V6, the adapter was probably originally on a T-86. The front of each transmission is even to show how much longer the T-15 is compared to the T-90.

Usage

The T-15 was used only in V8 equipped CJs and Jeep trucks from 1972 to 1975.

Transmission 1st 2nd 3rd 4th 5th Rev
T-15 3.00 1.83 1.00 3.00
