Jeep Transmissions: T-14

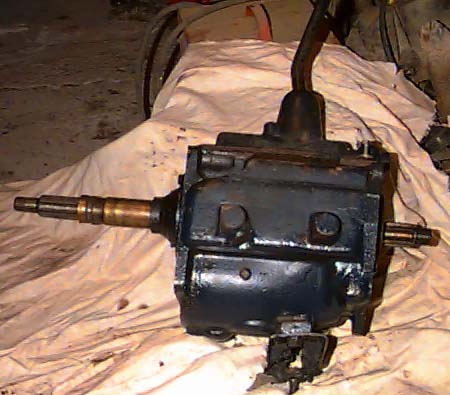

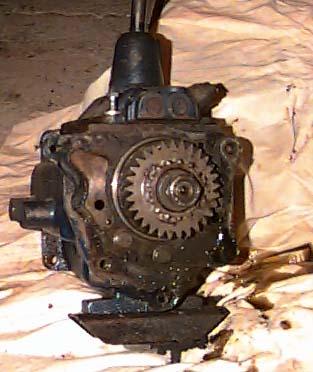

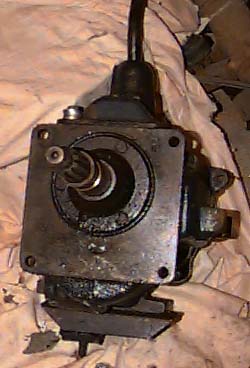

T-14 front T-14 side T-14 back


Jeep Trans

45RFE
46RE
44RE
42RE
46RH
32RH
30RH
AW4
AX-15
AX-5
BA10/5
T-5
TF727
909
999
904
T-4
SR-4
T-178
T-177
T-176
T-150
T-18
T-15
TH400
T-14
T-86
T-90
T-84

Jeep Trans

Upgrades
Factory Options
General


The T-14 is a 3 speed transmission with a cast iron case. I has a casting number of T14A or 1302 and a 1 1/8" 10 spline input shaft. The I6 T-14 has a 1 3/8" 6 spline output while the V6 T-14 has a 1 3/16" 10 spline output. Input shafts lengths also vary between the two applications.

Usage

The T-14 was used in CJs from 1967 to 1975.

Transmission 1st 2nd 3rd 4th 5th Rev
T-14 3.10 2.61 1.00 3.10

Contributors

Photos courtesy Daniel Regan
