Jeep Transmissions: T-86

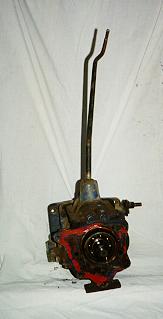

T-86 front T-86 side T-86 back


Jeep Trans

45RFE
46RE
44RE
42RE
46RH
32RH
30RH
AW4
AX-15
AX-5
BA10/5
T-5
TF727
909
999
904
T-4
SR-4
T-178
T-177
T-176
T-150
T-18
T-15
TH400
T-14
T-86
T-90
T-84

Jeep Trans

Upgrades
Factory Options
General


The T-86 is a 3 speed transmission with a casting number of T86 and a 1 1/8" 10 spline input shaft. Length of input shaft varies with application. Output is 1 3/8" 6 spline. The T-86 case and other parts are interchangable with with the T-90.

The T-86 uses a factory transmission to bell housing adapter. The adapter has the standard Chevy transmission bolt pattern and it bolts to Chevy, Buick, Pontiac, etc. bell housings. These bell housings are the same on the transmission side. There are more pictures of a T-90 with this adapter on the T-90 and T-15 pages.

Usage

The T-86 was only used behind the "Dauntless" Buick V6 in in CJs and Jeepster Commandos during the late 60s.

Transmission 1st 2nd 3rd 4th 5th Rev
T-86 2.798 1.687 1.00 3.798

T-86 drivers side
