The AX-5 is a light duty five speed transmission. It looks similar to the AX-15, but smaller. It is manufactured by Aisin in Japan. The input shaft is 1" 14 spline and the output shaft can be 21 spline or 23 spline.

Usage

The AX-5 and the Peugeot BA 10/5 were used in all Wranglers from 1987-1989. After mid 1989, the AX-5 has only been used in 4 cylinder Wranglers (YJs and TJs). Its usage is similar in Cherokees (XJ) and Comanches (MJ).

AX-5 front

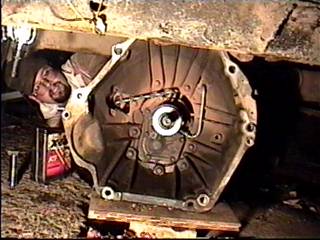

The AX-5 from the front with bell housing and clutch slave cylinder installed. Friendly neighbor not included.

BA 10/5 side

A driver's side shot of a BA 10/5 for comparison. Notice how the BA 10/5 doesn't have the regular ribbing on the driver's side. The passenger side of the BA 10/5 does have regular ribbing. The main case of the BA 10/5 is made of two pieces bolted together, where as the AX-5 main case is one solid piece of cast aluminum.

Transmission 1st 2nd 3rd 4th 5th Rev
AX-5 3.93 2.33 1.45 1.00 0.85 4.74
