The AMC 360 was introduced in 1971 in J-series pickups and Wagoneers. It has a cast iron block and cylinder head with over head valves and hydraulic lifters.

In 1971, the AMC 360 have very high rating. I would assume these are gross ratings and the later are net ratings.

AMC 360 V8
Bore x Stroke4.08" x 3.44"
Displacement360(5.89L)
Compression Ratio8.5:1
Horsepower (gross)245@4400
Torque (gross)365@2600
Main Bearings5
Valve ConfigurationOHV
Fuel2bbl

In 1972, the 2bbl 360 is more conservatively rated, presumably these are net ratings.

AMC 360 V8
Bore x Stroke4.08" x 3.44"
Displacement360(5.89L)
Compression Ratio8.5:1
Horsepower (net)175@4000
Torque (net)285@2400
Main Bearings5
Valve ConfigurationOHV
Fuel2bbl

In 1973, an optional 4bbl carburetor was available. The horsepower and torque ratings for this version are significantly better.

AMC 360 V8
Bore x Stroke4.08" x 3.44"
Displacement360(5.89L)
Compression Ratio8.5:1
Horsepower (net)195@4400
Torque (net)295@2900
Main Bearings5
Valve ConfigurationOHV
Fuel4bbl

Contributors

Photos courtesy Rick Boiros.

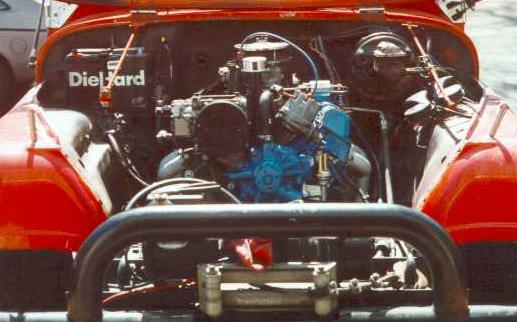

360 V8 side
