Jeep Winches: Dana 20 PTO Adapter

by Terry L. Howe


PTO adapter

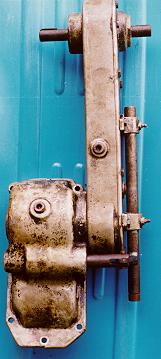

Joe's Dana 20 PTO adapter is off a late 60s or early 70s Jeep pickup with a Dana 20. He guesses that a shorter version might have been available for CJs because this version puts the PTO shaft very close to the frame rail and it apears that the shaft will hit the cross member.

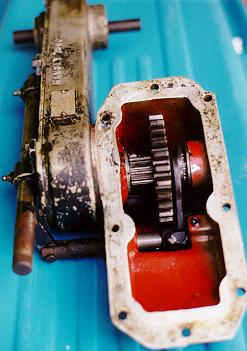

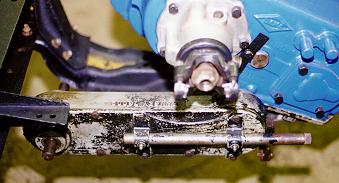

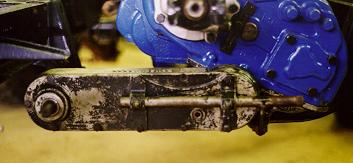

PTO adapter The astute may notice that Joe's pictures depicting the the Dana 20 PTO adapter mounted to the transfer case actually show the adapter bolted to a Scout Dana 300. The adapter will NOT work on a Dana 300. The gear will not mesh poperly and the casting of the case interfers with the operation. Joe bolted the adapter on the Dana 300 to illustrate how it attaches.

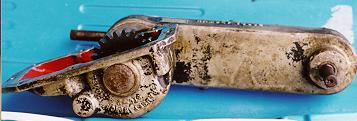

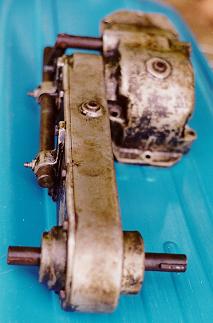

PTO adapter PTO adapter PTO adapter

Matt O'Brien sent some pictures from his CJ-p5 that show his adapter bolted to a Dana 20.

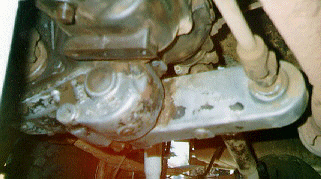

PTO adapter from the front Front the front you can see the drive shaft going off to the PTO winch.

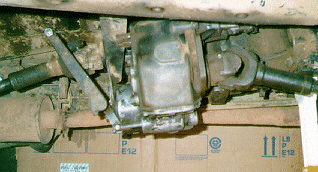

PTO adapter from the passenger side From the passenger side, the lever to engage the PTO is visible. Matt doesn't have all the linkage hooked up, so he enjoys crawling under his Jeep in deep water and mud to pull that lever.
PTO adapter from the rear From the rear you can see the lever to engage the PTO and the rear PTO output of the adapter. You can also see the ground clearance lost by the Dana 20 PTO adapter, it isn't nearly as bad as one would think it would be. The Dana 20 already has a deep oil pan and the bulk of the adapter is toward the high side of the transfer case.

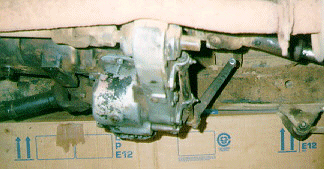

PTO adapter from the drivers side From the drivers side you can see the front and rear PTO outputs for the PTO adapter and the PTO shaft going up front.

Identification Information

Some identification information off of the PTO adapters:
Matt's
Transfer case adaptor Ramsey Winch / STC-2 / 73001
Chain drive cover STC-5W / 73080
Joe's
Transfer case adaptor Ramsey Winch / STC-2 / 73001
Chain drive housing STC-3 / 73002

Contributors

Thanks to Matt O'Brien and Jeepin Joe Heinrich for the Dana 20 PTO adapter pictures and information.
